Solar Pump Sets

A solar pump is an application of photovoltaic technology which converts solar energy into electricity to run motor and pump. The motor powered by solar energy draws water out of the bore well, river, lake or pond.

contact now

Product Detail

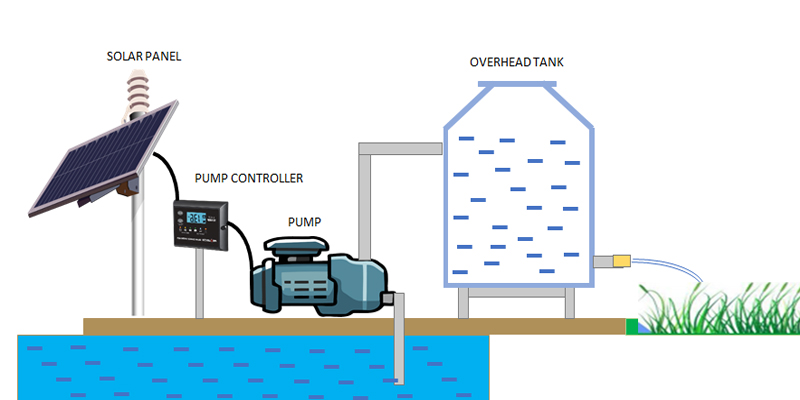

Solar Water Pump Working Procedure

The photovoltaic cells in solar modules convert sunlight into Direct Current (DC) electrical energy. This DC energy is then fed to the Motor Pump Set via Pump Controller in case of DC pump or via Variable Frequency Drive (VFD) in case of AC pumps (VFD controls speed of Motor). The Pumping system is a combination of an impeller and a motor; the impeller propels water movement and the motor drives the pump. The water is propelled out of the bore well/river/lake/pond through the pipe so that water can then be fed to the fields for irrigation and other purposes. Water output varies during the day depending upon varying solar irradiance.

Benefits Of Solar Pump

1. No dependence on erratic grid power and saving on expensive diesel

2. Higher yield during the day time when crop gets all the necessary ingredients- sunlight and water

3. Water output across all seasons to cultivate multiple crops every year

3. One time investment and then zero running costs (free sunlight) for many years to come

4. Easy for farmers to cultivate the land during day time rather than at night time when grid is erratic

5. Drip and sprinkler systems can be connected with the solar system to further improve crop yield

6. Solar system needs no maintenance except regular cleaning of the modules - no consumables; easy to operate

7. As water can be harnessed any time of the day, the user can plan his other activities independently

8. Contribution to reduction of carbon emission and pollution

WHY TATA POWER SOLAR PUMP ?

Brand Tata A synonym for trust
Brand Tata Power Solar India's only solar company with 32 years of solar experience; India's leading solar manufacturing company
Reliability 25 years solar module warranty with < 0.1% warranty claim over 2 decades
Safety Features Protection features like dry run, reverse polarity, low voltage and lightening arrestor
Longevity Corrosion resistant galvanized iron mounting structures for longer life
Hassle Free Installation Assistance for paper work and best-fit system for maximizing your benefit
Certifications Conforming to MNRE specifications by Government of India

Do's

Check the connections and cables periodically for any damages and report.
Always operate the controller with dry hands.
Set the tracker to position shown.
After sunset, when operating in manual mode, modules must be brought to stow position which is parallel to the earth.
Check safety rope for damages and replace when needed.
After any storms/rain, check the system for healthy working.
Controller to be operated by trained people.
Clean the modules early in the morning or late in the evening when the modules are at normal temperature
Keep the controller box locked.
If the controller or actuator is not working, then, do place a call to the customer service support team of Tata Power Solar
Get the annual maintenance contract signed
Ensure the lubrication on screw rods (manual tracking) is provided every 3 months for smooth operation. s

Don'ts

Do not replace any modules with modules of other make or rating
Do not open the connections between the modules.
Junction box must not be operated by an untrained person.
Do not compare your pump's water discharge at the field with that of neighbours, as it depends on the bore condition.
